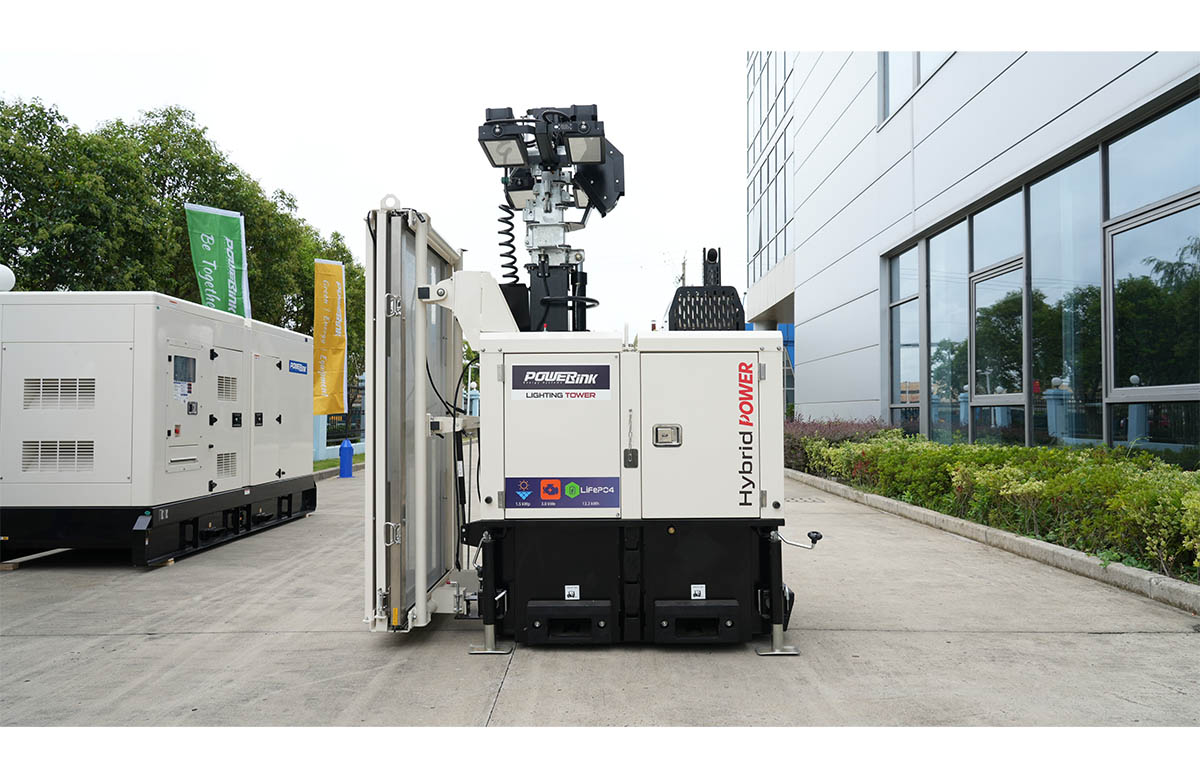

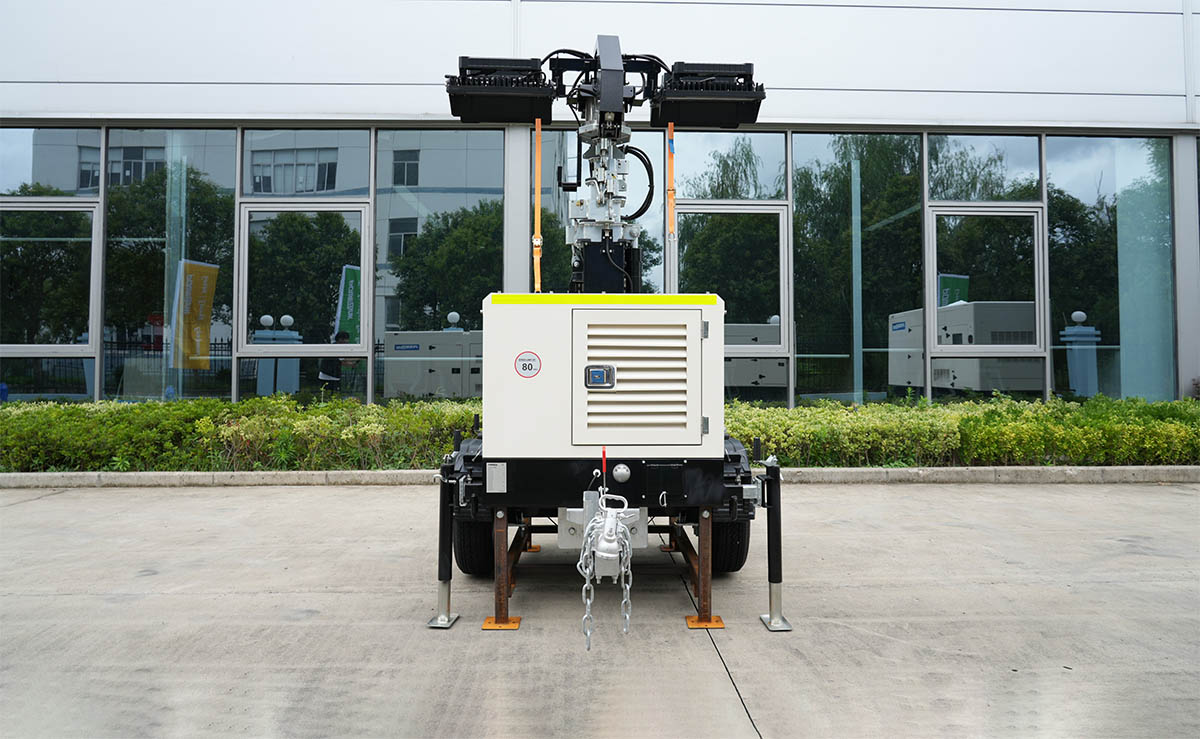

MS2000 Hybrid Lighting Tower

Overview

The MS2000 hybrid lighting tower provides powerful and reliable illumination anytime, anywhere, meeting your needs whether it’s a construction site, outdoor event, emergency response operation, or remote work area.

This lighting tower utilizes a hybrid power system, combining a 10.2 kWh energy storage battery and a 3 kW DC generator, ensuring continuous lighting even under extreme conditions while reducing fuel consumption and noise. Its intelligent PLC control system automatically switches between battery, generator, and hybrid modes to optimize performance and energy utilization.

Key Features

Hybrid Power System

Combines energy storage battery and diesel generator for efficient, flexible power delivery.

Intelligent PLC Control

Automatically or manually switches between power modes and supports timed, automatic, and manual operation.

High-Efficiency LED Illumination

LED lamps save up to ~70% energy compared to traditional lighting.

Remote Monitoring & Control

Operate and monitor tower status from a smartphone, tablet, or computer.

All-Weather Durability

Engineered to operate in harsh temperatures from −25 °C to 50 °C.

Hydraulic System with Adjustable Mast

359° rotation and 0–90° lamp angle adjustment for optimal light direction.

Extended Lighting Height

9 m mast extension for broad area coverage.

Robust Construction

Designed for rugged outdoor use in construction, events, emergency and remote sites.

Product Parameters

Fuel tank capacity L 90
Total lighting wattage W 4*320W
Luminous flux (Max) lm 192000lm
Rated voltage V DC 51.2V
Mast extended height m 9m
Dry weight kg 1348
Dimensions (Fully retracted) mm 2399*1448*2468
Dimensions(Fully extended) mm 2399*2562*9000

General Questions

What is the best feature of PowerLink?

With over 20 years of experience in R&D, manufacturing, and global service, PowerLink is a leading power equipment manufacturer. We focus on innovation, efficient production, and reliable lighting tower solutions. Our expertise and forward-thinking approach help us deliver maximum value to customers and investment partners worldwide.

How are PowerLink lighting towers classified?

Diesel-Driven & Hybrid Lighting Towers: Including models such as SLT1800, MS2000, SL60K, and hybrid configurations.

Solar Lighting Towers: Featuring SL30K, SL60K, SL90K, and other solar-powered models.

What are the features of the PowerLink lighting towers?

The lighting tower features a compact, modular design for easy transport, simple operation, low maintenance, and excellent cost performance.

As a direct manufacturer, PowerLink has deep expertise in the entire equipment system. From the power generation module to the automation control software, all core technologies are independently developed and fully mastered in-house.

What is the MS2000 Hybrid Lighting Tower?

The MS2000 Hybrid Lighting Tower is a high-efficiency mobile lighting solution that combines a 10.2 kWh energy storage battery with a 3 kW DC generator to provide reliable lighting for construction sites, events, emergency response, and other outdoor projects.

Why buy a PowerLink lighting tower?

You should buy a PowerLink lighting tower if you need reliable, fuel-efficient, and professionally engineered lighting for demanding job sites. PowerLink towers are manufactured under ISO 9001 quality standards and built with strict in-house production control to ensure consistent performance and durability.

PowerLink lighting towers offer:

  • High-performance LED illumination for maximum brightness with lower energy consumption

  • Hybrid, diesel, and solar options to match different project requirements

  • Fast lead times supported by strong inventory and efficient manufacturing

  • Global reliability, with products operating in over 100 countries

  • Complete support, including product selection guidance and responsive after-sales service

How does the hybrid power system work?

This hybrid system integrates an onboard battery and a diesel generator. The intelligent PLC controller can automatically or manually switch between pure battery mode, pure generator mode, and hybrid mode according to lighting needs, thereby maximizing efficiency and reducing fuel consumption.

What are the main operation modes of this lighting tower?

MS2000 supports three modes: manual, automatic, and timed operations, and it also features light-sensing auto-switching and multi-stage brightness adjustment for flexible use.

Can the MS2000 be monitored and controlled remotely?

Yes, remote monitoring and operation are supported via mobile phone, tablet, or computer, allowing easy status checks and control from afar.

Where can I buy PowerLink Lighting towers?

PowerLink products are available through our authorized distributors in more than 100 countries worldwide. We recommend contacting your local distributor for pricing, availability, and after-sales support.

If there is no distributor in your region, you can contact our factory directly. Our sales specialists will provide personalized, one-on-one assistance to help you select the right solution for your project.

What environments is the MS2000 designed for?

This hybrid lighting tower is built to withstand harsh outdoor conditions, with an operating temperature range from -25 °C to 50 °C, making it suitable for construction sites, ports, events, emergency zones, and remote work areas.

What makes PowerLink lighting towers different from competitors?

PowerLink has over 20 years of experience in power energy equipment development, production, and global service. Their towers feature compact modular design, simple operation, easy maintenance, and high cost-effectiveness.

What is the mast height and light coverage?

The MS2000 tower extends up to 9 m with a 359° rotating mast and adjustable lamps, providing wide, high-intensity light coverage across large outdoor areas.

Where can I use this hybrid lighting tower?

It’s ideal for a variety of applications including construction projects, outdoor events, emergency response operations, mining sites, ports, and remote locations where dependable lighting is required.

How do I choose the right lighting tower for my project?

Consider your lighting area, power source preferences, run time needs, and environmental conditions. Hybrid units like MS2000 combine flexibility with fuel efficiency, while solar or diesel-only towers may suit specific use cases.

Can this unit be used in extreme weather?

Yes, the MS2000 Hybrid Tower is designed to operate in challenging weather and extreme temperatures, but protecting the unit from harsh elements when possible helps extend service life and reliability.
